Omega Geneve 166.041
Omega cal 565

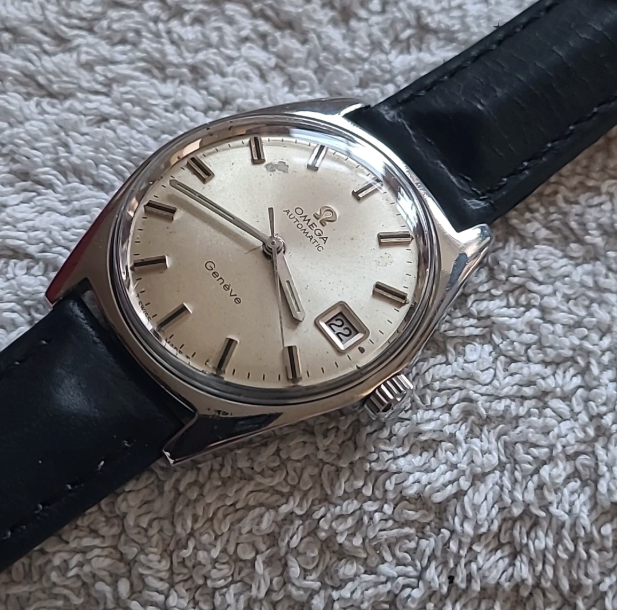

Omega Geneve Automatic Calibre 565 166.041
The Calibre 565 is one of Omega’s most respected movements — automatic, smooth-winding, and exceptionally robust.
This Genève represents everything collectors love about the golden era of Swiss watchmaking.
applied hour markers, original hands, and date window at 3 o’clock deliver classic Omega balance, while the automatic Cal. 565 movement — widely regarded as one of Omega’s finest workhorses — provides reliability and precision.
Reference : 166.041

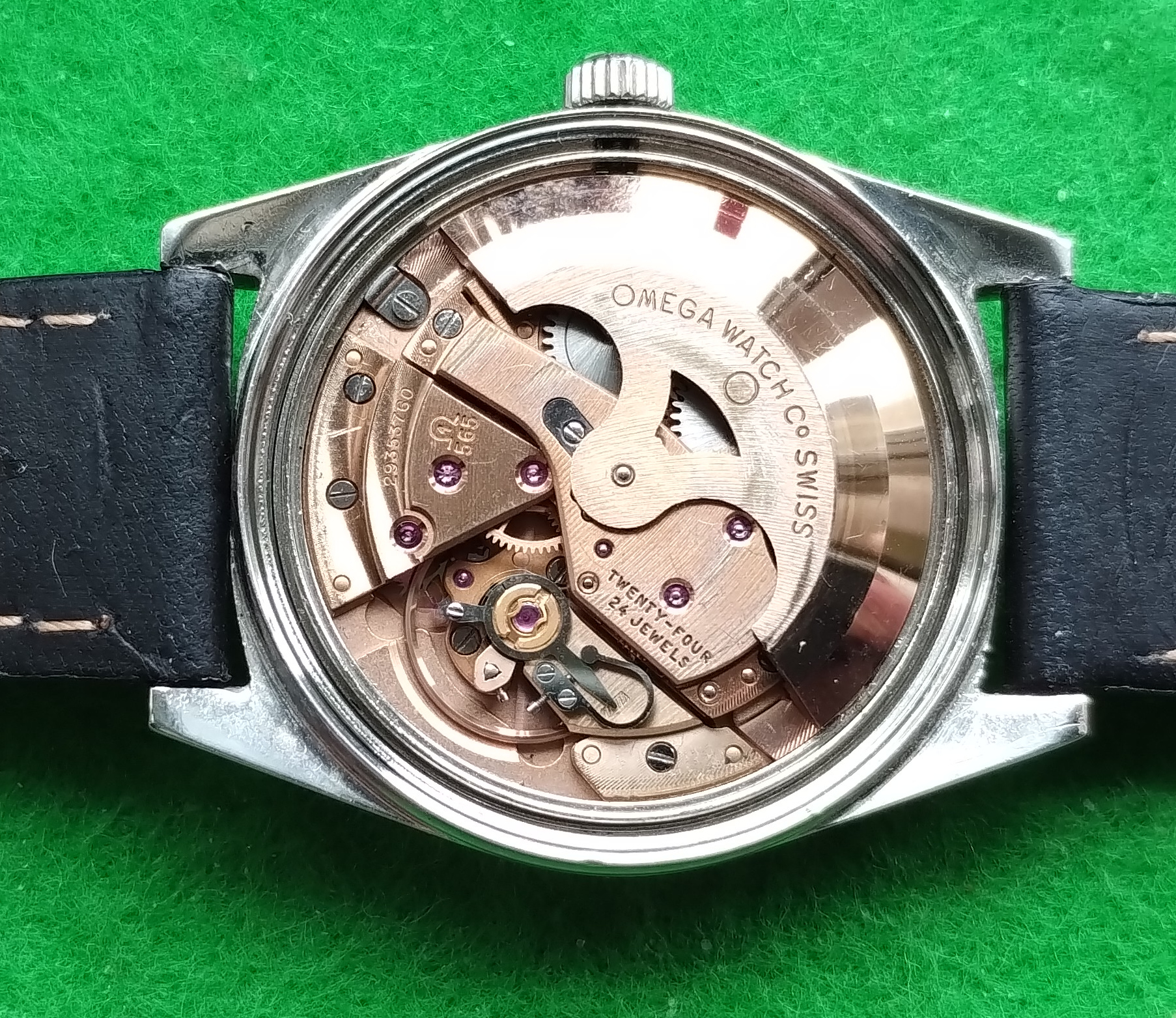

Movement : Automatic Cal 565
24 jewels and precision regulation
19,800 bph / 2.75 Hz
Age Range : 1966/1969
Specific Age : 1969
Case Size : 34.5mm
Case Thickness : 12mm
Lug to Lug : 42mm
Lugs : 18mm
Stripped down the Omega watch, found dial had been glued to calendar plate, one of the dial feet was stuck in the mainplate and the other has the retaining screw missing.
The watch was clean but no sign of lube, lower balance jewel retaining spring loose.
Ordered a new mainspring and dial feet.
Parts:
Mainspring: GR2533
Dial Feet: 0.69mm
Click spring: Omega 450-1105
Jewell Retaining spring: Inca 175.03
Lower shock block: 563-1346
Pallet fork: 565-1316
Lower spring broke when i tried refitting it after cleaning, looks like someone has had trouble in the past as both sides of the jewel holder are marked.
Also when i came to re-assemble the movement, the upper pallet fork pivot snapped off!!
I found a used pallet on ebay for £48 so i bought it, it has now been fitted and the watch is back to servicable condition and running at -2/+10 s/d
This one tried my patience a little, even considered selling it for parts but i am glad i didn't now it is running.
Product Line
1 = Constellation
2 = Seamaster
3 = Speedmaster
4 = De Ville (De Ville Prestige and Symbol)
5 = Louis Brandt
7 = De Ville (Vasarelli)
Omega Serial Number Range Earliest Production Year
1,000,000 – 1,999,999 1894
2,000,000 – 2,999,999 1902
3,000,000 – 3,999,999 1906
4,000,000 – 4,999,999 1910
5,000,000 – 5,999,999 1915
6,000,000 – 6,999,999 1923
7,000,000 – 7,999,999 1930
8,000,000 – 8,999,999 1934
9,000,000 – 9,999,999 1939
10,000,000 – 10,999,999 1944
11,000,000 – 11,999,999 1947
12,000,000 – 12,999,999 1950
13,000,000 – 13,999,999 1952
14,000,000 – 14,999,999 1954
15,000,000 – 15,999,999 1956
16,000,000 – 16,999,999 1958
17,000,000 – 17,999,999 1959 ***
18,000,000 – 18,999,999 1961
19,000,000 – 19,999,999 1962
20,000,000 – 20,999,999 1963
21,000,000 – 21,999,999 1964
22,000,000 – 22,999,999 1965
23,000,000 – 24,999,999 1966
25,000,000 – 25,999,999 1967
26,000,000 – 27,999,999 1968
28,000,000 – 31,999,999 1969
32,000,000 – 32,999,999 1970
33,000,000 – 33,999,999 1971
34,000,000 – 35,999,999 1972
36,000,000 – 37,999,999 1973
38,000,000 – 38,999,999 1974
39,000,000 – 39,999,999 1975
40,000,000 – 40,999,999 1977
41,000,000 – 41,999,999 1978
42,000,000 – 43,999,999 1979
44,000,000 – 44,999,999 1980
45,000,000 – 45,999,999 1982
46,000,000 – 47,999,999 1984
48,000,000 – 48,999,999 1985
49,000,000 – 50,999,999 1986
52,000,000 Not Used
53,000,000 – 53,999,999 1991
54,000,000 – 54,999,999 1993
55,000,000 – 55,999,999 1995
56,000,000 – 59,999,999 1998
60,000,000 – 60,999,999 1999
61,000,000 – 64,999,999 2000
65,000,000 – 65,999,999 2001
66,000,000 – 67,999,999 2002
68,000,000 – 69,999,999 2003
70,000,000 – 71,999,999 2004
72,000,000 – 77,999,999 2005
78,000,000 – 80,999,999 2006
81,000,000 – 83,999,999 2007
84,000,000+ 2008+
Omega Speedmaster Serial Number Range Estimated Production Year(s)
14,000,000 – 14,999,999 1957
15,000,000 – 15,999,999 1958
16,000,000 – 16,999,999 1958/1959 ***
17,000,000 – 17,999,999 1960
18,000,000 – 18,999,999 1961
19,000,000 – 19,999,999 1962
20,000,000 – 21,999,999 1963
22,000,000 – 22,999,999 1964/1965
23,000,000 – 23,999,999 1966
24,000,000 – 25,999,999 1967
26,000,000 – 26,999,999 1968
27,000,000 – 27,999,999 1969
28,000,000 – 30,999,999 1970/1971
31,000,000 – 31,999,999 1972
32,000,000 – 32,999,999 1973
33,000,000 – 33,999,999 1975
34,000,000 – 34,999,999 1976
35,000,000 – 36,999,999 1977
37,000,000 – 37,999,999 1978
38,000,000 – 39,999,999 1979
40,000,000 – 41,999,999 1980
42,000,000 – 42,999,999 1981
43,000,000 – 43,999,999 1982
44,000,000 – 44,999,999 1983
45,000,000 – 45,999,999 1984
46,000,000 – 46,999,999 1985
47,000,000 – 47,999,999 1986 - 1989
48,000,000 – 48,999,999 1990 - 1999
77,000,000+ (new serial numbering system) 1999+
